Fraunhofer Small Cells
For this project I was asked to design a device to connect multiple 60-ghz antennas into one antenna array.

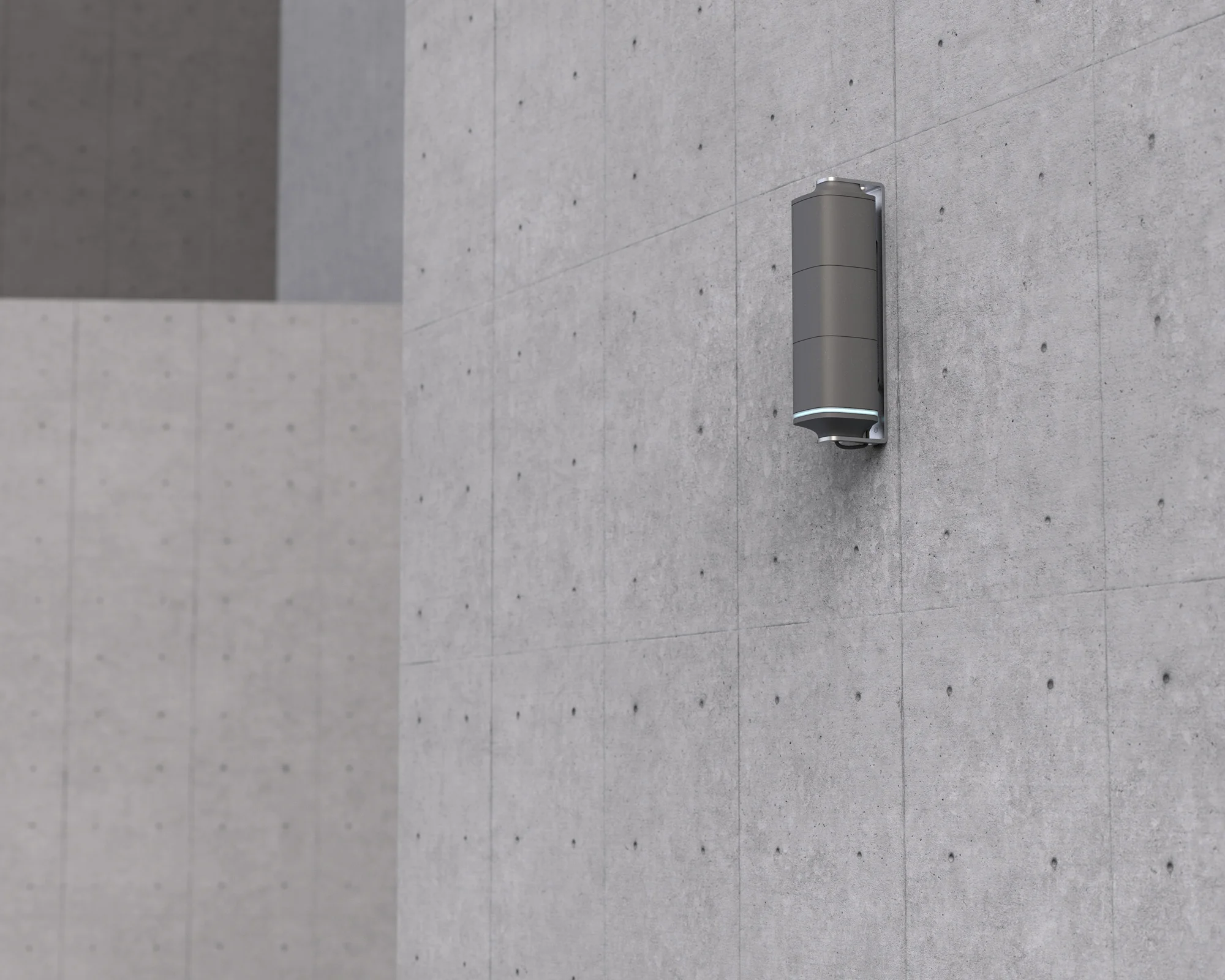

I came up with a modular product architecture in which the number of nodes can be adapted by stacking the modules. Up to 4 modules can be connected vertically. The individual modules are self-aligning and thus establish data connections with other Small Cells to form a wireless backhaul system.
I developed both the internal structure as well as the entire housing.
